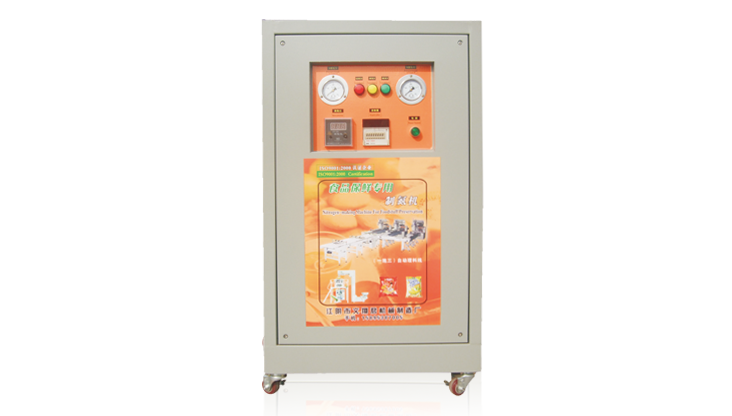

該機型的運行狀態為“半自動運行”（即需人為操作設備的啟停），空氣進口、氮?dú)獬隹谠O(shè)有過濾調壓部件，氮?dú)饧兌扔?9.5-99.9%氮?dú)夥治鰞x在線檢測，制氮吸附塔交替運行排空時，加裝有快速排空裝置，以達到制氮工藝快速脫附要求，延長了工藝電磁閥的使用壽命。
Running state of the machine is "semi-automatic operation" (that is, the need for operating the start-stop of the equipment). Air inlet and nitrogen outlet are equipped with pressure egulating components. Nitrogen purity is monitored by analyzer on-line, by 99.5-99.9% unit. Alternately emptying system of nitrogen adsorption tower, with a rapid emptying device, in order to achieve the requirements of rapid stripping in nitrogen making process, prolongs the life of electromagnetic valve.
適用于食品醫藥行業：面包、月餅、蛋黃派、法式面包、餅干、巧克力、雪米餅、藥品、葡萄酒、茶葉以及各種農副產品的充氮保鮮包裝。
此款機型適合個體食品企業進行充氮包裝。建議使用節能系列食品保鮮制氮機。
Applicable to the food and pharmaceutical industry : the nitrogen-filled preservation and packaging of bread, moon cake, yolk pie, French bread, biscuits. chocolate. snow cake, pharmaceuticals, wine, tea and various agricultural and sideline products.
This machine is suitable for individual food companies in nitrogen-filled packaging. It is recommended to use energy-saving series of nitrogen making machine for food preservation.
| 型號規格 Model |
氮?dú)猱a(chǎn)量 Nitrogen production Nm3/h |
功率 Power W |
氮?dú)饧兌?br />
Nitrogrn purity % |
氣源壓力 Gas pressure Mpa |
產氮壓力 Pressure of production nitrogen Mpa |
外形尺寸 Appearance size L×W×H(mm) |
|
| SC-3A | 碳鋼 Carbon steel |
3 | 5 | ≥99.5-99.9 | 0.8-1.0 | 0.1-0.65 | 590×570×1100 |
| 不銹鋼 Stainless steel |
|||||||
| 注：可供一臺枕式包裝機充氮?dú)猓x配空壓機排量：0.4Nm3/min-10 Ps: It enables a pillow packaging machine to fill nitrogen and the matched air compressor capacity is 0.4 Nm3/min-10. |
|||||||
| SC-5A | 碳鋼 Carbon steel |
5 | 5 | ≥99.5-99.9 | 0.8-1.0 | 0.1-0.65 | 590×570×1360 |
| 不銹鋼 Stainless steel |
|||||||
| 注：可供二臺枕式包裝機充氮?dú)饣蛞慌_大立式包裝機充氮?dú)?，選配空壓機排量：0.6Nm3/min-10 Ps: It enables 2 pillow packaging machines or a big vertical packaging machine to fill nitrogen and the matched air compressor capacity is 0.6Nm3/min-10 |
|||||||
|
||||
|
||||
