氣體比例混合器可用于食品氣調保鮮包裝或其它用途的氣體混合?；旌蠚怏w的流量能滿足各種真空充氣包裝機、氣調包裝機的操作要求?？筛鶕?jù)客戶要求定做0.5NM3/h - 500NM3/h的混合氣流量。

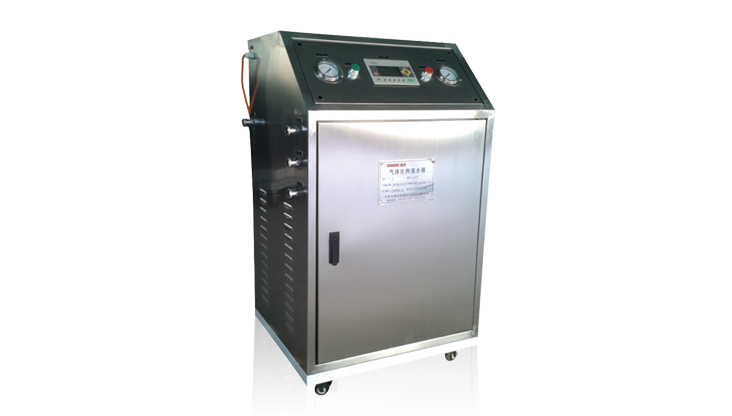

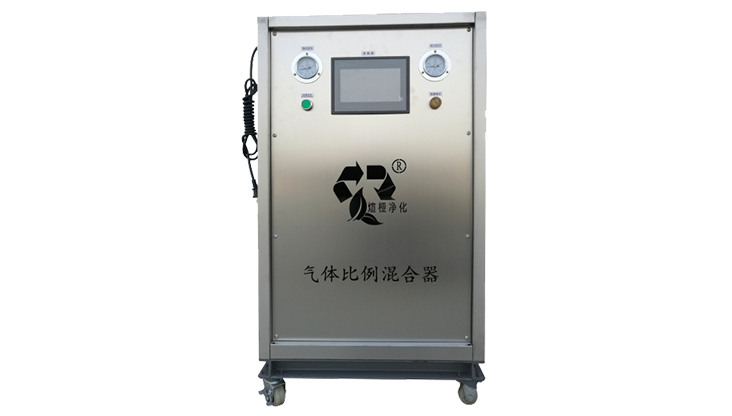

Proportional gas mixer can be used for food preservation and packaging and other purposes of gas mixture. The flow of mixed gas can meet the requirements of all kinds of vacuum packaging machine, modified atmosphere packaging machine and it can be customized to 0.5 NM3/h - 500 NM3/ h according to customer's requirements.
1、氣體混合數：二種氣體(O2與CO2或CO2與N2)或二種氣體(O2、CO2、N2)
2、氣體比例混合范圍：0 -100%(體積百分比)
3、氣體混合精度：≤±2%
4、氣源與氣源壓力：氣體鋼瓶，壓力為0.5 - 0.6MPa
5、連續供氣量：0.3 - 0.5MPa供氣壓力時流量0. 5NM3/h-500NM3/h
6、供氣壓力與流量：可調節
7、工作電壓：220V(請配電源穩壓器)
8、外形尺寸：( LxWxH) 530×500×l000rnrn
9、機重：50kg
1. number of mixed gas: two kinds of gas (O2 and CO2 or the CO2 and N2) or three kinds of gas (o2 and CO2 and N2)
2. range of mixed gas ratio: 0- 100% (volume percentage)
3. precision of the mixed gas:= ± 2%
4. gas supply and the pressure of gas supply: gas cylinders. The pressure is 0.5-0.6 Mpa
5. continuous gas supply: 0.3-0.5 Mpa. The flow rate is 0.5 Nm3/h - 500 Nm3/h.
6. the pressure and flow of gas supply: adjustable
7. working voltage: 220 V (please equip with voltage regulator)
8. appearance size: ( L×W×H ) 530×500×l000mm
9. weight: 50 kg
